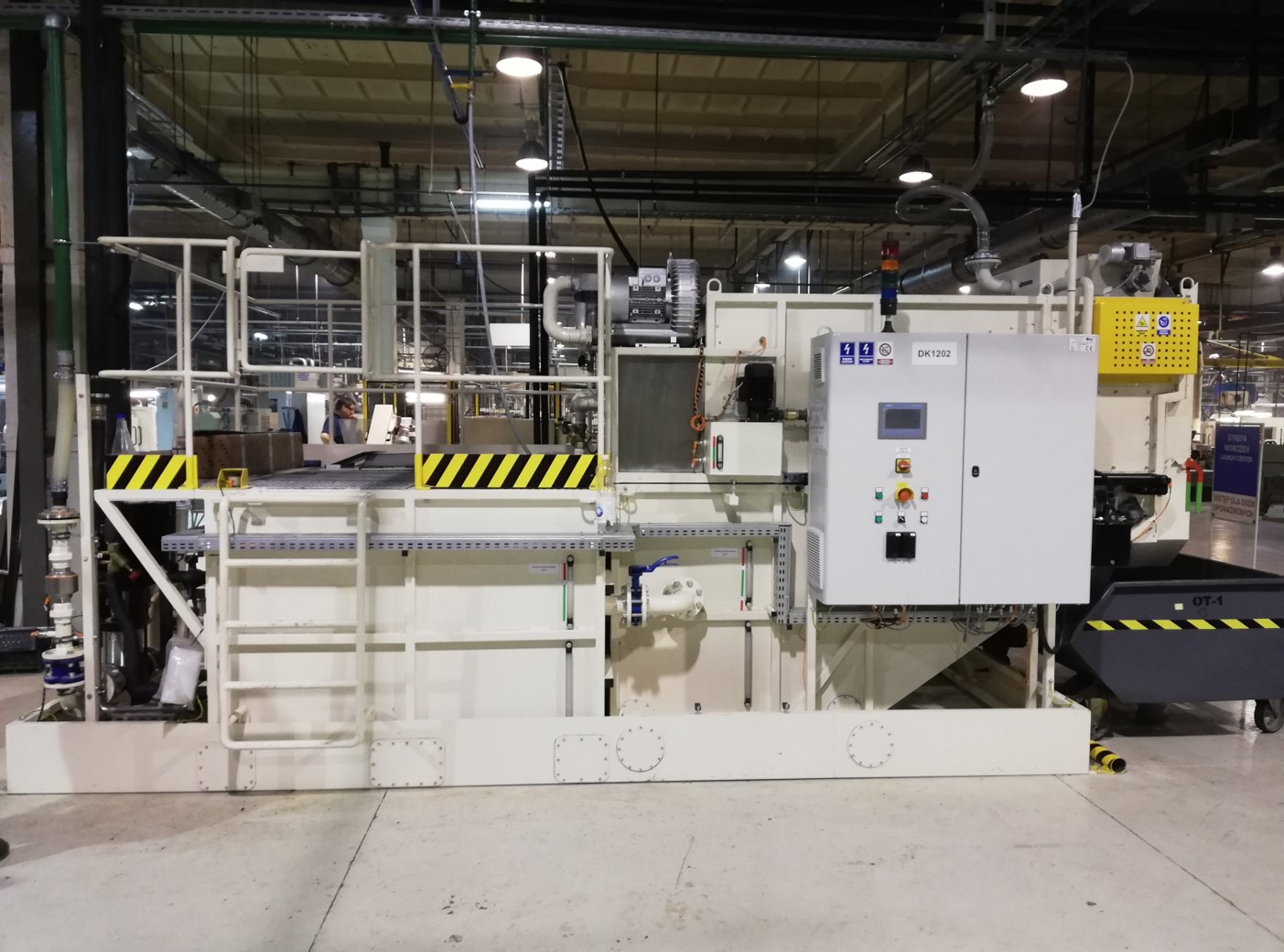

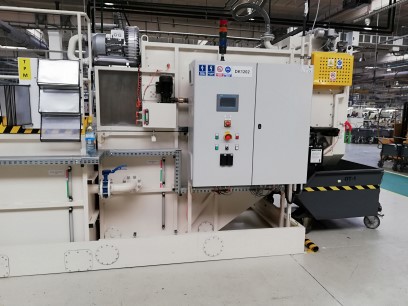

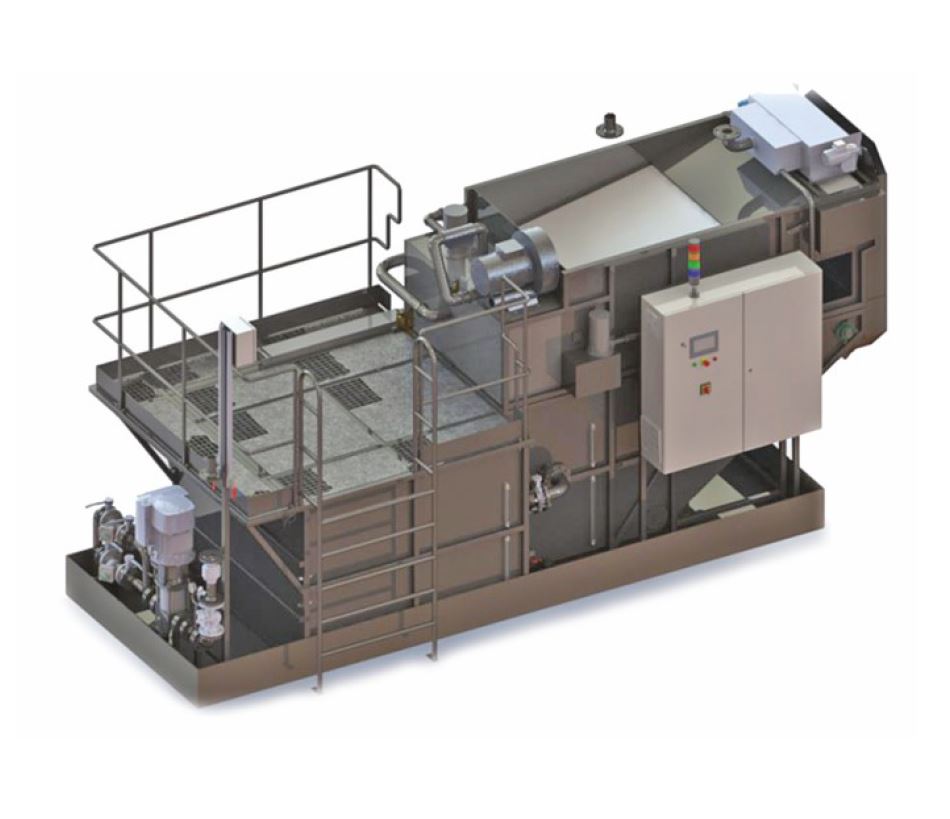

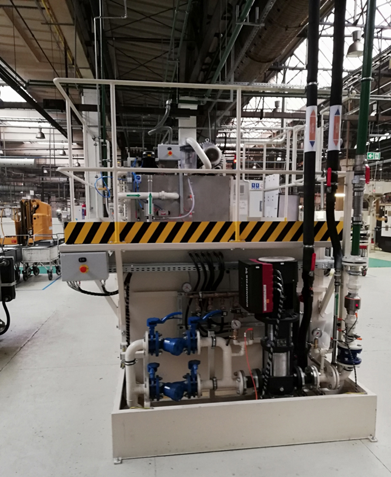

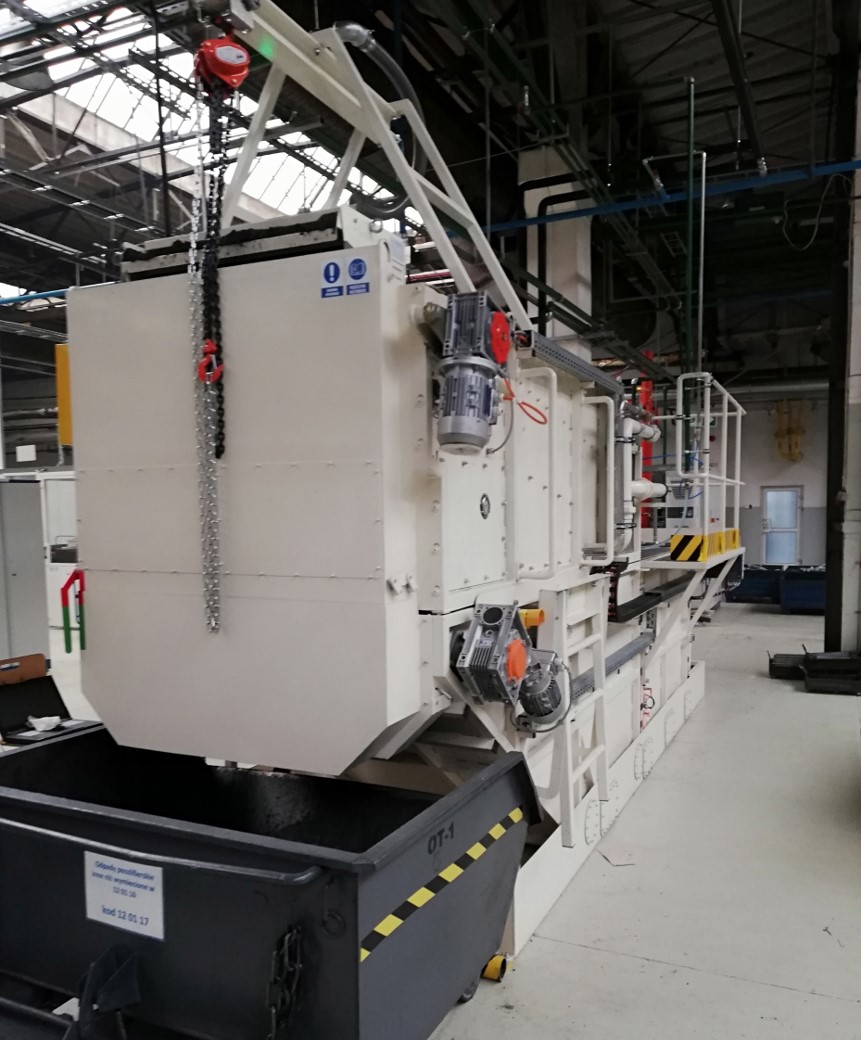

CUF central coolant filtration systems
Central filtration systems for coolants, emulsions and washing baths with a flow rate of up to 5,000L∕min. This is the most practical solution if high flows and limited space on the production floor are involved. The machining fluids in our central systems are filtered at several stages depending on the customer’s needs and the required final quality, cooled, stored and completely reconditioned, so that they arrive at the machines in impeccable condition. All components from pumps to filters and tank are compactly connected, which minimizes maintenance work, significantly improves the quality of machining fluids, reduces monitoring time to a minimum, saves space on the production floor (one central station instead of a station at each machine), and reduces consumption.
- Flow automatically adapted to production needs
- Final quality of machining fluids at a consistent level
- Significantly extend the life of machining fluids, tools and machines
- Fully automatic system
- 24/7 automatic operation
- Saves space on the production floor
- Ability to integrate with internal plant system/network and remote monitoring
- Full monitoring of consumption
- Option of installing automatic dosing and concentration control module
- Reducing concentrate consumption
- Higher surface quality of manufactured parts
- Reduced costs associated with machine cleaning
- Extending coolant life up to 400%
- Reduced cost of disposal of used coolant
- Reducing defects in terms of corrosion reduction
- Reduction of operator work in terms of replenishing and monitoring of coolant
- In any machining process (turning, grinding, milling, others), where machines work with the same machining fluid
- The minimum number of machines to be connected is 2 machines and the maximum is more than 40 machines
- In processes requiring fine filtration with high flow rates
Why is it worth it?
24/7 AUTOMATIC OPERATION
FULL MONITORING OF CONSUMPTION
SAVES SPACE ON THE PRODUCTION FLOOR
EXTENDING THE LIFE OF THE COOLANT
REDUCTION IN DISPOSAL COSTS
Technical details
| CUF PARAMETERS | |
|---|---|
| Flow* | 100-5000 L/min |
| Filtration accuracy | 5-500 μm |
| Operating pressure | 6-12 bar |
| System capacity | 3-100 m³ |
| Operating temperature | 15-60°C |
| Operating pH range | 6-13 pH |
| Electricity supply | 3x400 V, PE N |
| ADDITIONAL OPTIONS | |
| Chiller | YES |
| Automatic emulsion dosing | YES |
| Automatic monitoring of parameters | YES |
| GSM∕VPN remote access | YES |
| DEGREES OF FILTRATION ** | |
|---|---|
| Scraper | YES |
| Decanter | YES |
| Magnetic filter | YES |
| Gravity filter | YES |
| Drum filter | YES |
| Vacuum mat | YES |
| Separation of foreign oils | YES |
| Ozonator | YES |
| Bag filter | YES |
