DMP-50SE

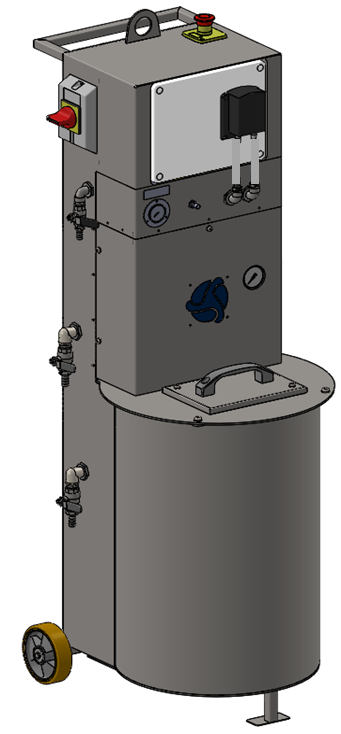

DMP SE typ DMP-50SE 50SE is used to produce a release agent from “difficult” concentrates, e.g. on the basis of mineral salts or graphite, in the proper concentration desired by the User, thanks to automatic dosing into water of the proper additions of the concentrate, and then supplying machines/installations with the produced solution.
The installed agitator allows thorough mixing of water and concentrate of the prepared solution. The ZATRIX® A automatic mixer used in the device, depending on the option ordered, allows the preparation of a solution of concentrate and water, with a concentration of 10-30%.
⦁ Setting the required concentration with an accuracy of 0.1%
⦁ Reading water and concentrate consumption data
⦁ Supply of prepared solution to processing plants/machines
⦁ Reading water and concentrate consumption data
⦁ Supply of prepared solution to processing plants/machines
Why it's worth it?
SETTING THE REQUIRED CONCENTRATION WITH AN ACCURACY OF 0.1%
READING WATER AND CONCENTRATE CONSUMPTION DATA
SUPPLY OF PREPARED SOLUTION TO PROCESSING PLANTS
EASY TO INSTALL
SIMPLE TO USE
Technical data:
| DIMENSIONS AND WEIGHT | |
|---|---|
| Dimensions (W x D x H) | 492 x 605 x 1438 mm |
| Transport weight (with empty tank) | 75kg |
| Operating weight (with full tank) | ~125kg |
| ELECTRICAL SYSTEM | |
| Power supply | 230VAC, 50Hz |
| Power consumption | 105W |
| Control voltage | 24VDC |
| REQUIRED PARAMETERS OF THE ELECTRICAL CONNECTION | |
| Supply voltage | 230VAC, 50 Hz |
| PNEUMATIC SYSTEM | |
| Compressed air system pressure | 5bar (±0,5bar) |
| REQUIRED PARAMETERS OF THE COMPRESSED AIR CONNECTION | |
| Required connection | ¼", quick connect NW 7.2 MO |
| Required pressure | 5,5÷8bar (0,55÷0,8MPa) |
| Required flow rate | 200Nl/min |
| PROCESS SYSTEM | |
| Concentration range (depends on the option selected by the customer) | 1÷30% |
| Accuracy of the set concentration | 0,1% |
| Usable capacity of tank with agitator | ~50 l |
| Water supply flow | 5÷25 l/min |
|
Water pressure: at closed circuit: przy obiegu otwartym: |
≤2 bar ≤1 bar |
| Maximum solution/coolant outlet pressure (adjustable) | 4 bar |
| Implementation | stainless steel 1.4301 |
| REQUIRED PARAMETERS OF THE WATER CONNECTION | |
| Connection diameter | ½” |
| Required water pressure | 2 bar ÷16 bar |
| Required flow rate | ≥30 l/min |
| CONCENTRATE CONNECTION PARAMETERS | |
| Connection diameter | 3/8” |
