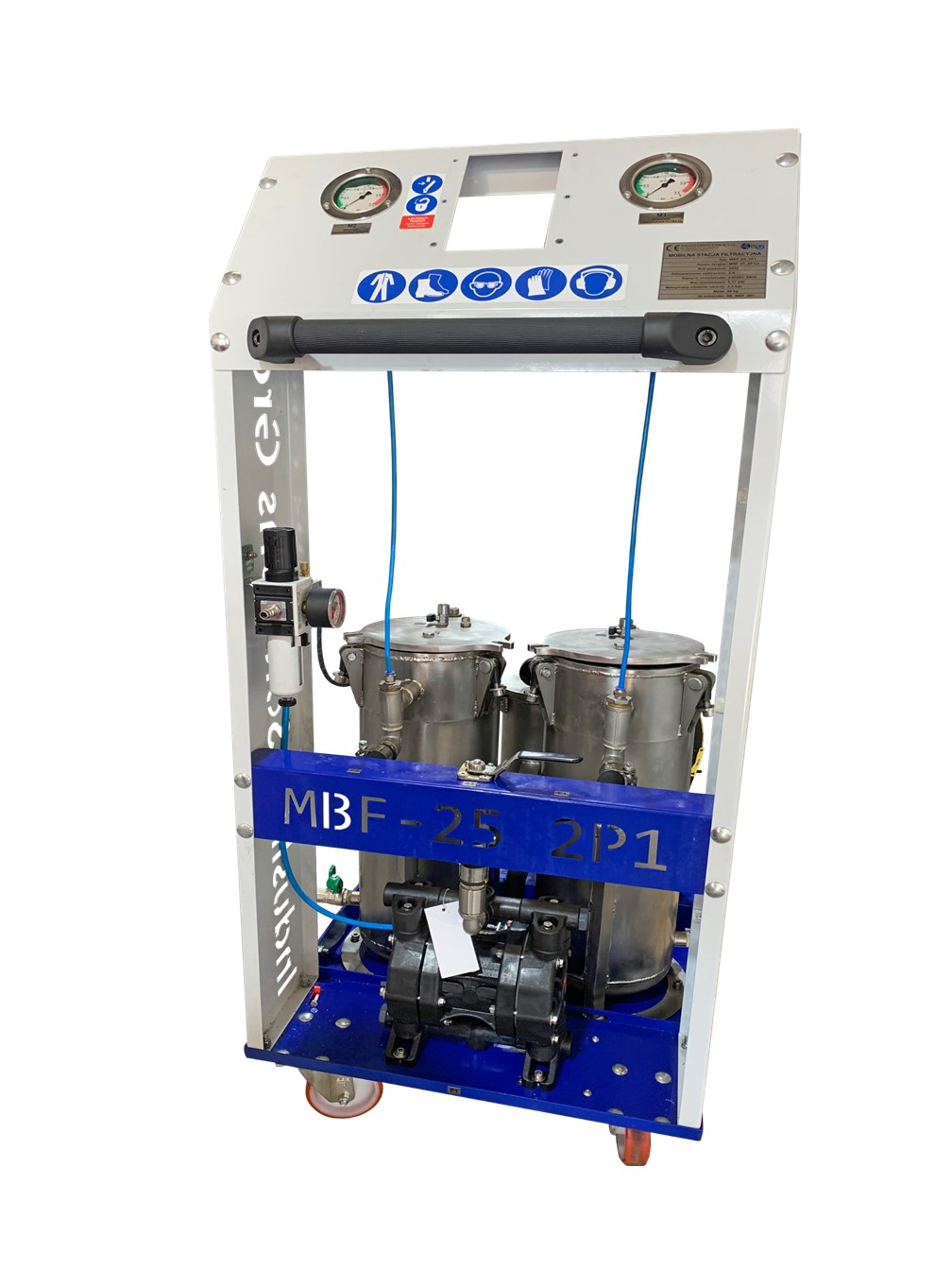

MBF-25 mobile filtration station
Mobile filtration station MBF-25 is designed for filtering hydraulic oils: mineral, synthetic and glycol-based. The three-way valve used in front of the filters and the check valves located behind each of the two filters of the device allow cleaning of a dirty bag filter, while the other filter is operating at the same time, without having to shut down the operation of the entire station. The filtration accuracy depends on the filter cartridge used by the user (1÷30μm).
The station, thanks to the installed wheels, allows you to freely transport it anywhere, and the hoses used in it allow one to filter oil from the tank which is located even in a hard-to-reach place.
Why is it worth it?
FILTRATION ACCURACY DEPENDS ON THE FILTER CARTRIDGE USED
EASE OF MOVEMENT
COMPACT DIMENSIONS
SIMPLE TO USE
Technical details
| DIMENSIONS AND WEIGHT | |
|---|---|
| Dimensions (W x L x H) | 600 x 800 x 1306 mm |
| Weight | 80 kg |
| ELECTRICAL SYSTEM | |
| Power supply | 230V AC 50 Hz. |
| Power consumption | 0,37 kW |
| Power cord length | 10 m |
| PROCESS SYSTEM | |
| Maximum viscosity of pumped liquids |
Consistent with the viscosity of SAE 30 type mineral oils at 30MC. |
| Maximum liquid density | 1,1 g/cm³ |
| Maximum liquid temperature | 90°C |
| Maximum output | 28 l/min |
| Maximum pressure | 2,5 bar |
| Filtration accuracy | 1÷30 µm depending on the cartridges used in the filters |
| Hose length and diameter (input and output) | 2x10 mb, ¾” |
| Maximum suction height |
ok. 6m (depending on fluid properties, the total length of the hoses and pipes and their cross-sections) |
| Maximum discharge height | 20m |
| Body/carriage design |
black steel 1.0037 protected by anti-corrosive powder coating |
