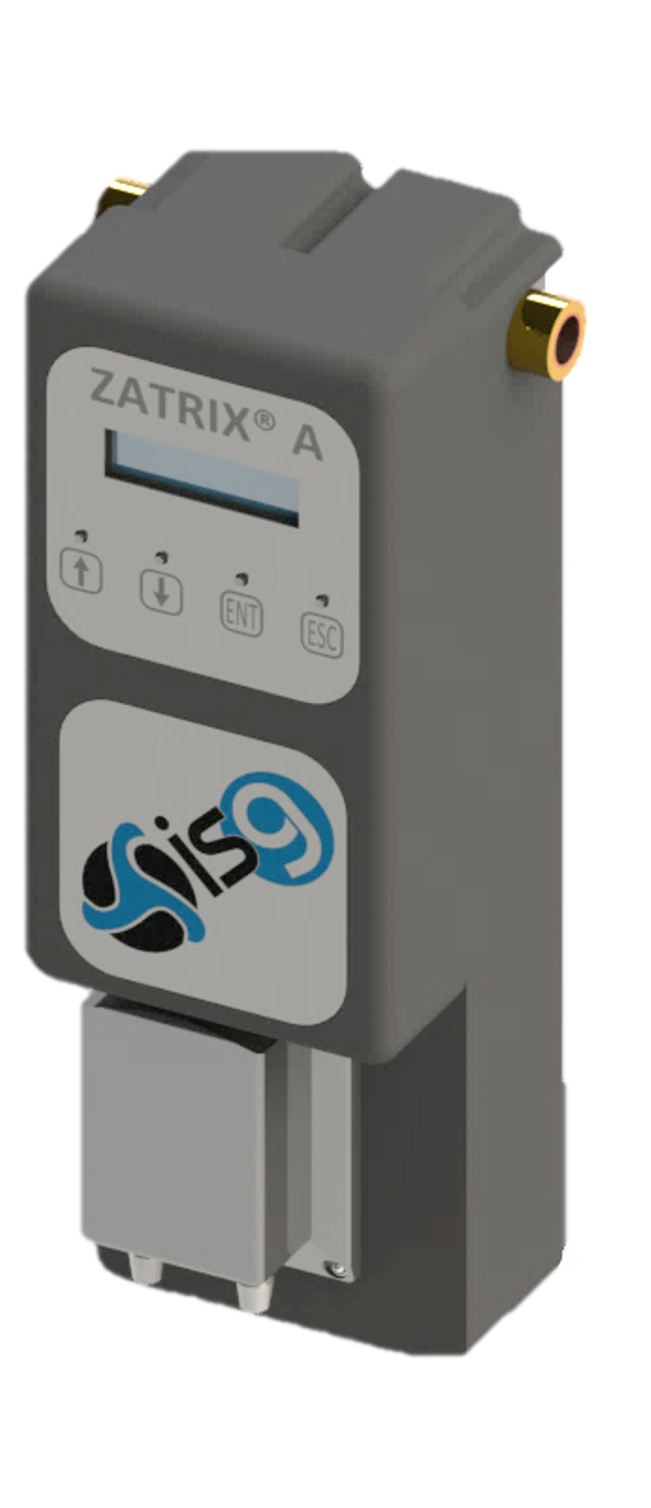

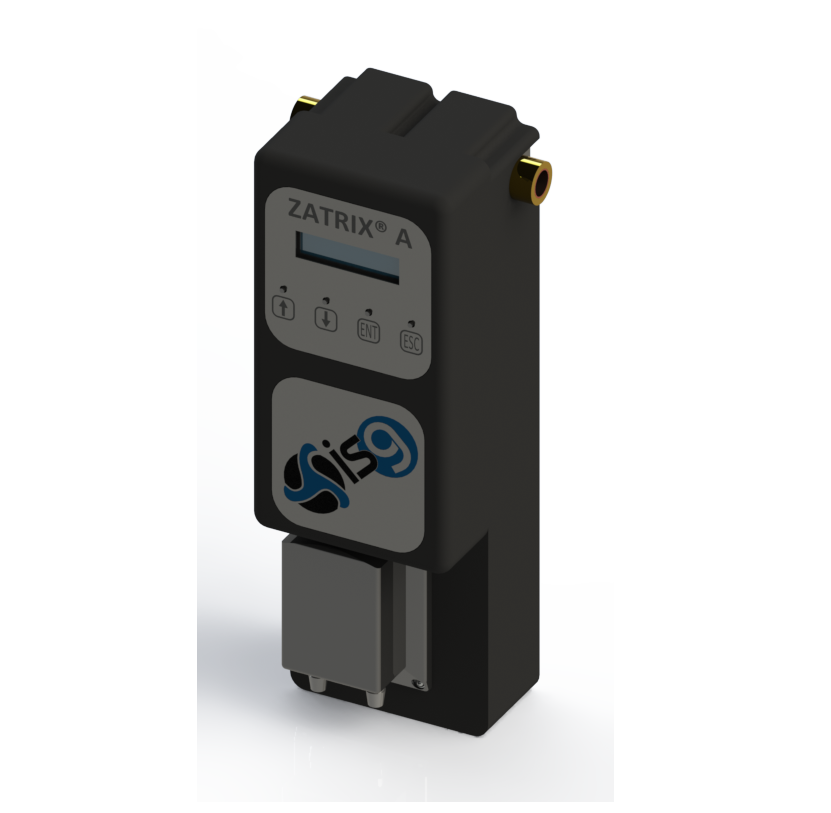

ZATRIX® A series
ZATRIX® A series, type A5 or A10, is used to produce a new cooling-lubricating emulsion (for machining) of the proper concentration desired by the user, by dosing proper additions of concentrate into water (mineral, semi-synthetic or synthetic water-based oil).
ZATRIX® A5 is designed for the preparation of a cooling and lubricating emulsion with a concentration of up to 5%
ZATRIX® A10 is designed for the preparation of a cooling and lubricating emulsion with a concentration of up to 10%
ZATRIX® provides maximum accurate emulsion dosing for better machining quality, reduced handling of coolant monitoring and many other factors, streamlining operation on all connected machines.
The station is prepared for expansion with additional components such as a minimum level sensor, maximum level sensor, anti-overflow sensor and a control solenoid valve – shutting off the supply to the machine.
In addition, in combination with our state mixers, it is capable of preparing an emulsion ready for feeding into central buses – a central system.
Replenishment of emulsion in the machine tank – float shut-off valve
Machine tank refilling – automatic regulation of emulsion level in the machine tank
Refilling of the machine tank – automatic level control + control of the minimum level of the concentrate tank
Machine tank refilling with concentration averaging + automatic level control
Central machine replenishment system with automatic level control
Communication via RS 485 and ZATRIX® APP software – LAN version or USB version
- Ability to set the required concentration with an accuracy of 0.1%
- Concentration range 0.5-10%
- Full monitoring of consumption of water and concentrate
- Ability to generate comprehensive consumption reports
- Ability to plug up to 256 dispensers into one central network
- Fully automatic system
- Reduction of concentrate consumption
- Reduction of water consumption
- Very high stability of concentration behavior
- Reduced cost of disposal of used emulsion
- Generate quick consumption reports using “ZATRIX® APP”
- Option of managing a network of dispensers in the app
- Possibility to connect analog or digital level sensors to the tank with prepared emulsion
- Possibility of connecting an electro-valve that opens / closes the water supply to the machine tank
- Ability to control the pump supplying the system with the medium
- Metering capability, based on the reading of an optional additional connected external water flow meter
- Ability to remotely switch on metering, via digital signal
- Ability to control the concentration setpoint by analog signal
Why is it worth it?
POSSIBILITY TO SET THE CONCENTRATION WITH AN ACCURACY OF 0.1%
REDUCTION IN WATER AND CONCENTRATE CONSUMPTION
FULLY AUTOMATIC SYSTEM
VERY HIGH STABILITY OF CONCENTRATION BEHAVIOR
OPTION OF MANAGING A NETWORK OF DISPENSERS IN THE APP
Technical specifications
| Unit | ZATRIX® A5 | ZATRIX® A5S | ZATRIX® A10 | ZATRIX® A10S | |
|---|---|---|---|---|---|
| Concentration | % | 0-5 | 0-5 | 0-10 | 0-10 |
| Accuracy | % | +/- 0,1 | +/- 0,1 | +/- 0,1 | +/- 0,1 |
| Connection | GZ | ¾" | ¾" | ¾" | ¾" |
| Connection spacing | mm | 160 | 160 | 160 | 160 |
| Weight | kg | 4,8 | 4,8 | 4,8 | 4,8 |
| Dimensions (W x D x H) | mm | 159x117x390 | 159x117x390 | 159x117x390 | 159x117x390 |
| Power supply | VAC, Hz, A | 230, 50, 2,5 | 230, 50, 2,5 | 230, 50, 2,5 | 230, 50, 2,5 |
| Power | W | 75 | 75 | 75 | 75 |
| Supply voltage | VDC | 24 | 24 | 24 | 24 |
| Equipment | |||||
| LCD display | |||||
| Electronically preset concentration | |||||
| Control of SAUM solenoid valve | |||||
| Control of SAUM level sensor | |||||
| Control of SAUM overflow sensor | |||||
| Configurable input - external signal * | |||||
| Configurable output ** | |||||
| Network operation *** | |||||
| Reading consumption data **** | |||||
| Operation in ZATRIX® APP ***** | |||||
SAUM – system of automatic replenishment of the machine medium
* possibility of cooperation with an external device, e.g.: dosing start/end signal, concentration reading from a refractometer,
** configurable output, such as: min. concentrate level alarm, dosing error
*** operation of one or multiple devices (up to 256) in one MODBUS network – management from ZATRIX® APP
**** in A-5 and A-10 version locally from LCD display
***** ZATRIX® APP – PC software for operating ZATRIX® A-…s series dispensers enabling:
- Creation of dispenser network topology – division into groups
- Remote presetting of concentrations to individual units/groups of dispensers
- Readout of water and concentrate consumption data
- Generation of consumption reports in the form of graphs
- Readout of statuses: operation, levels, concentrations, warnings and alarms depending on equipment expansion
