MRD series

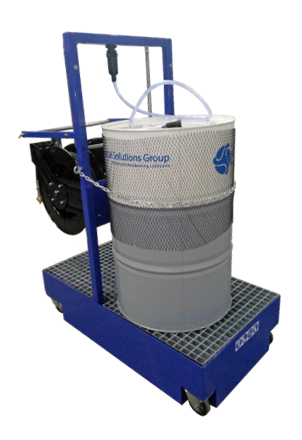

Mobile coolant distribution station type MRD-200 is used to produce a solution of a given concentrate with water, in the proper concentration desired by the User in the range of 0.5%-10% (thanks to the use of manual mixer ZatriX), and then to manually fill tanks (machining or other applications) with the solution, at a maximum distance of 30m from the water connection.
The station is equipped with a gun with an electric meter, allowing you to control the amount of solution filled. An important advantage of the MTD-200 is its mobility, thanks to the installed wheels it is possible to transport it anywhere. The use of retractors with suction and discharge hoses allows the operator to unwind these hoses to the length that is actually needed at the time, while being able to easily and quickly retract these hoses after the work is completed.
Why is it worth it?
PRODUCING A SOLUTION OF THE CONCENTRATE WITH WATER AT THE DESIRED CONCENTRATION
CONTROL OF THE AMOUNT OF SOLUTION TO BE FILLED
MOBILITY
MAX. DISTANCE OF 30 M FROM THE WATER CONNECTION
EASY AND FAST SERVICE
Technical details
| DIMENSIONS AND WEIGHT | |
|---|---|
| Weight (without concentrate tank) | 165kg |
| Permissible weight of the concentrate tank | 220kg |
| Overall dimensions (W x L x H mm) | 660 x 1300 x1583 |
| DATA TECHNOLOGICAL LAYOUT | |
| Operating pressure | 1÷3 bar |
| Capacity | 5÷30 l/min |
| Cable/hose length on a single retractor | 15m |
| Maximum distribution distance from water connection | ok. 30m |
| Cable/hose diameter on retractors | ½” |
| REQUIREMENTS FOR EXTERNAL WATER CONNECTION | |
| Required water connection pressure | 3÷16 bar |
| Required water flow | ≥10 l/min |
